Independence® IDX 8000

The ultimate in realism and performance

“A new standard for the most powerful and compact real-time image generation available in simulation, training and mission rehearsal applications with GeoScapeSE® WWDB, the industry’s first seamless worldwide coverage utilizing drop in high-resolution insets, the SoCal sample database and from our growing library of airfields, the San Francisco International Level D airport.”

Able to meet or exceed the requirements of virtually any image generation application, the Independence IDX 8000 provides the best value in open architecture, advanced IG solutions available today. IDX 8000 is perfect for any simulation system: fixed-wing and rotary-wing aviation, FAA Level D Full-flight simulators, weapons and gunnery systems, hardware-in-the-loop sensors, automotive research, development and driving simulators, military ground vehicles, fixed base and forward air traffic control, ship’s bridge, mono & stereo scientific visualization and virtual reality.
As the top-of-the-line model in the Independence IG series, the IDX 8000 leads the way in providing the industry’s highest compute perfomance density. By incorporating low profile server-class mother boards with the latest Intel Haswell processors, and up to two of NVIDIA’s “Maxwell” or “Pascal” architecture GPUs on each, the IDX 8000 achieves up to 4X the performance of the previous NVIDIA
technology.
With its smaller package and increased performance, IDX 8000 sets the standard for rapid deployment, field upgradeability and scene realism. The IDX 8000 delivers performance, fidelity, reliabilty, quality and overall value. With its NVIDIA Quadro Sync technology, the IDX 8000 can scale up to any large system, with over 50 synchronized channels.

Features and Benefits

  • Long Term Support

    3 year warranty or 10 year service support under Quantum3D’s obsolescence guarantee program.

  • Density

    The IDX 8000 achieves unmatched levels of visual computing density by combining a server-class motherboard, latest Intel processors, and up to two of NVIDIA’s “Maxwell” or “Pascal” architecture GPUs on each, and Quadro Sync Precision Video Synchronization into a compact 1U Rendering Unit (IGU).

  • Open Architecture

    The IDX 8000 supports industry-standard CIGI 3.x messaging protocol over dedicated Gigabit Ethernet, and industry-standard database formats including OpenFlight, NPSI, CDB, and CTDB.

  • Worldwide Database

    The IDX 8000 supports Quantum3D’s World Wide Database (WWDB) - a continuous flight, worldwide terrain, modeled with 15m geo-specific imagery. Drop-in Hi-Res insets are customer-enabled using CatalystSE DBGS tools.

  • High Resolution Channels

    Super High-resolution, multiple-input, projectors (e.g. 4K x 2K) are supported with no additional effort.

  • Sensor Enabled

    The IDX 8000 supports QUEST®2 and viXsen for correlated, physics-based NVG, IR, Day Camera EO Simulation applications and Stimulated NVG applications.

Independence IDX 8000

Applications

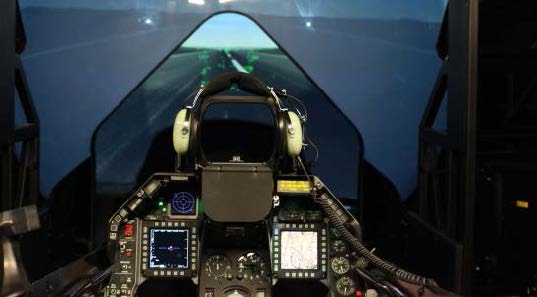

The Independence® IDX 8000 is the perfect candidate for military fixed- and rotary-wing, FAA Level D, and JAR FSTD flight simulation, aerial refueling simulation, gunnery training, hardware-in-the-loop sensor simulation, ground vehicle simulation, fixed- and forward-based air traffic control, ship’s bridge simulation, mono & stereo scientific visualization, and virtual reality.

Specifications

Specifications
IG CharacteristicsNoise-suppressed 12U, 18U or 35U cabinet
Single-phase or 3-phase power with optional UPS
KVM support for console
1U IG Controller (IGC)
1U IG Rendering Units (IGU)
Environment Management System (EMS) monitors temperature, humidity, and smoke detection (optional)
Optional 1U SAS expansion drive bay w/ 4x4TB disks
Optional Fibre Channel Centralized NAS storage
IGU (Rendering Units)1U diskless, server-class PC
Intel® Xeon® Haswell Six-Core CPU + 16GB ECC DRAM
64-bit Windows 7 Embedded Standard
1 or 2 NVIDIA® Quadro® K5200 or M6000 GPUs
Up to 4 video channel outputs per IGU
IGC (Controller)1U Enterprise Class Server
Intel Xeon Haswell Six-Core CPU
16GB ECC System Memory
NVIDIA GPU
Enterprise RAID controller w/3 internal 4TB disks (not required when using the NAS option above)
Microsoft Windows Server 2012
CertificationsFCC, IEC, UL, CE, CSA
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
